RMX Series

RMX Series

Features :

  • Sounder
  • Non-washable / Washable
  • Dip Solder
  • Wide Band
  • High SPL

Introduction / Specification / Manual :

Introduction

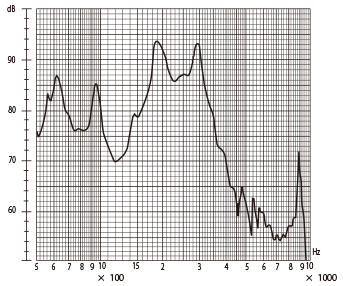

Frequency Response:

(RMX-06)

RMX-06 Frequency Response

※applied voltage:6V, square wave:1/2duty, distance for measurement:10cm



Dimensions:(size:φ16x14mm)

(RMX-06)

RMX-06 Dimensions

unit:mm/housing material:PBT

Specification

RMX-06RMX-12Y
Rated Voltage(V)612
※ Mean Current Consumption(mA)MAX40(TYP33)MAX40(TYP32)
Coil Resistance(Ω)45±7115±17
※ SPL at MIN 10cm(dBA)MIN85(TYP93)MIN85(TYP94)
Frequency Band(Hz)2,048
Reproduced Frequency(Hz) 2,000 ~ 3,000(≧80dB)
Operating Voltage(V)MAX12MAX18
Operating Temperature(℃)-40 ~ +85
Storage Temperature(℃)-40 ~ +85
Mass(g)5

※Value applying rated voltage(2,048Hz, 1/2duty, square wave)

Manual

Catalog [ 949KB ]

Technical Data [ 2630KB ]

Product list by specification [ 527KB ]

Caution for Using [ 200KB ]
