HMB Series

HMB Series

Features :

  • Electric Sound type
  • Non-washable / washable
  • Dip Solder
  • Low Current Consumption

Introduction / Specification / Manual :

Introduction

Frequency Response:

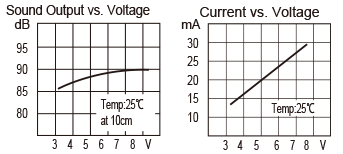

(HMB-06)

HMB-06 Frequency Response

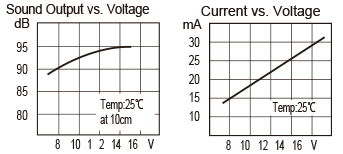

(HMB-12)

HMB-12 Frequency Response



Dimensions:(size:φ16×14.5mm)

(HMB-06)

HMB-06 Dimensions

unit:mm/housing material:PPE-M

※ Longer pin is(+)polarity

Specification

HMB-06HMB-12
Rated Voltage(V)612
Operating Voltage(V)4~78~16
※ Mean Current Consumption(mA)MAX30(TYP27)MAX30(TYP25)
※ SPL at MIN10cm(dBA)MAX85(TYP90)MAX85(TYP91)
※ Basic Frequency(Hz)2,200±300
☆Response Time(msec)MAX50
Operating Temperature(℃)-40 ~ +85
Storage Temperature(℃)-40 ~ +85
Mass(g)5

※Value applying rated voltage ☆Value applying min. operating voltage

Manual

Catalog [ 949KB ]

Technical Data [ 2630KB ]

Product list by specification [ 527KB ]

Caution for Using [ 200KB ]
