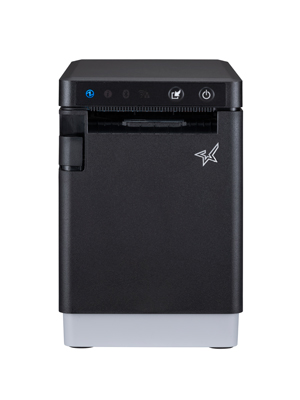

MCL21 Label Printer
Features :
- 300 DPI High-Resolution Printing
- Supports a wide range of label types, including: Strong & weak adhesive linerless labels Die-cut labels, Black mark labels, Thermal continuous rolls & Standard thermal paper
- Compact & Space-Saving Design
- Small footprint ideal for retail counters, kiosks, and tight workspaces
- Available in two models to suit your network needs
Standard Model: LAN + USB (Mfi Certified)
Enhanced Model: Wi-Fi + Bluetooth (Mfi Certified) + LAN + USB (Mfi Certified)
(Ideal for mobile and wireless environments)
Introduction / Specification / Catalog / Manual / Driver / SDK / Utility / Accessories ：
Introduction
The new 2” MCL21 Label printer designs for compact stations. Featuring 300 DPI high-resolution printing, it ensures crisp text, sharp barcodes, and precise graphics — perfect for retail, logistics, healthcare, and hospitality applications.
Specification
Series ： ｍC-Label 2
Model ： MCL21CWBI WIFI + BLUETOOTH (Mfi Certified) + LAN + USB (Mfi Certified)
Model ： MCL21CI LAN + USB (Mfi Certified)
Model ： MCL21CWBI LBL WIFI + BLUETOOTH (Mfi Certified) + LAN + USB (Mfi Certified)
Model ： MCL21CI LBL LAN + USB (Mfi Certified)
General : | |
| Interface | USB-C (Power delivery) x 1 Max 20W For iOS / Android / PC USB-A x 1 For peripheral devices Ethernet x 1 Wifi & Bluetooth (MCL21CWBI & MCL21CWBI LBL models only) |
| Design | IP22 Ingress protection |
| Case Color | Black |
| Installation | Horizontal |
| Printing Method | Direct Thermal Line Printing |
| Emulation | StarPRNT |
| Print Speed | Max. 180 mm/second |
| Power Supply | External 100～240V AC±10%, 2.71A |
| Dimensions | 98 x 185 x 145.5 mm (W x D x H) |
| Weight | Approx. 1.6 kg (main unit only) |
| Included Accessories | USB Cable, Power Supply Adapter, Power Supply Cable |
Paper : | |
| Type | Thermal Paper Roll |
| Media | Strong or Weak adhesive Linerless label (MCL21CWBI / MCL21CI), Continuous label, Die-Cut Label, BM Label, Receipt |
| Print Width | 25.4 ~ 60mm (linear Adjustable) |
| Print Length | 25 ~ 400mm (For Die-Cut Label & BM Label) |
| Die-Cut Label Gap | 3 ~ 6mm (For Die-Cut Label) |
| BM Dimensions | 3 ~ 6mm (H) X 15mm or more (W) (For BM Label) |
| Roll Diameter | Max. φ102mm |
| Roll Core | Min. φ 25.4mm |
| Thickness | 53-154μm (Varies depending on paper type) |
Auto-Cutter: | (For MCL21CI / MCL21CWBI only) |
| Cut Method | Selective: Partial cut (Leave center point) / Full cut |
Optional Add-On : | |
| Options | Customer Display (SCD222U) BCR12D Barcode Scanner HCR12BT Barcode Scanner |
Catalog
Star mC-Label2 Catalog - English Version [ 302KB ]
Star mC-Label2 Catalog - Simple Chinese Version [ 434KB ]
Manual
Star MCL21CWBI Easy Setup Guide [ 1.88MB ]
Star MCL21CI Easy Setup Guide [ 3.04MB ]
More manuals ...
Driver / SDK / Utility
Accessories
-- No Record --
Youtube Tutorial Video
