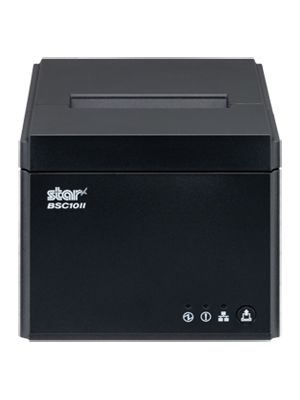

BSC10II Thermal Printer
Features :
- Mini & Stylish Cube Design
- USB C and Ethernet Dual Interface
- USB C port for Windows, Linux and Mac OS devices
- USB A charging for both USB C and Micro USB based Android devices with Android Open Accessory (AOA) support
- Operates either horizontally or vertically or wall mounted
- ECO Packing, less plastic
- Internal power supply
- Application: iOS Receipt Printer, iPad Receipt Printer, Android Receipt Printer, AOA Receipt Printer, Windows Receipt Printer, Mini Kitchen Printer
- Optional StarAsia Wifi Adapter
- Optional StarAsia M200 Printer Status Indicator
Introduction / Specification / Catalog / Manual / Driver / SDK / Utility / Accessories ：
Introduction
BSC10II features cube design with high printing speed supported Android Open Accessory (AOA). Android devices can communicate & be charged by one USB cable connected to printer . BSC10II can be placed horizontal, vertical or wall-mounted without additional equipment.
Specification
Series ： BSC10II
Model ： BSC10II-UE Ethernet + USB
General : | |
| Printing Method | Direct Thermal Line Printing |
| Application | Hospitality, Retail, mPOS, Ticketing |
| Printing Speed | Up to 250mm/sec for 80mm paper width or 220 mm/sec for 58mm paper width |
| Resolution | 203dpi |
| Emulation | Dual set: StarPRNT or ESC/POS |
| Sensors | Paper End & Cover Open |
| Case Color | Dark gray only |
| Auto-Cutter | Partial Cut (Leave center point) |
| Position | Horizontal, Vertical or wall-mount (no equipment) |
Paper : | |
| Paper Width | 80mm (Standard) / 58mm (with paper guide) |
| Paper Thickness | 0.049mm - 0.085mm |
| Paper Loading | Drop in & Print |
| Roll Diameter | Max 83mm |
| Top Margin | 11mm |
Interfaces : | |
| Connectivity | USB C for PC (like USB B), USB A for Android (Android Open Accessory, AOA), Ethernet, DK |
Power : | |
| Power Supply | Internal with power cable included, 100 ~ 240V AC+/-10% |
Measurement : | |
| Dimensions | 140 X 169 X 119mm (W X D X H) |
| Weight | 1.3 KGS (without paper roll) |
Life : | |
| Mechanical | 20 million lines |
| Cutter | 2 million cuts |
| Head | 100 KM |
| MCBF | 60 million lines of printing |
| MTBF | 360,000 hours |
Accessories : | |
| Included in the box | Power cable, Rubber feet 2pcs, Roll Paper guide, Easy Setup Guide (including Safety Guide) For HK market only：USB C or LAN cable, Paper roll |
| Options | CB2002 Cash Drawer, CD3336 Cash Drawer, Wifi adapter |
Catalog
Star BSC10II Series Catalog - English Version [ 5.61MB ]
StarAsia BCR12D Barcode Scanner Catalog - English Version [ 518KB ]
StarAsia HCR12BT Barcode Scanner Catalog - English Version [ 1140KB ]
StarAsia CB2002 Cash Drawer Catalog - English Version [ 213KB ]
StarAsia CD850 Cash Drawer Catalog - English Version [ 684KB ]
StarAsia CD3336 Cash Drawer Catalog - English Version [ 292KB ]
Manual
Star BSC10II Online Manual [ Click Here ]
BSC10II-UE User Manual [ 5.62MB ]
Star Windows Software Installation Manual [ 3.05MB ]
Star Line Thermal Printer ESC/POS® Mode Command Specifications [ 3.01MB ]
StarPRNT Command Specifications for BSC10II, TSP100IV, Portable Printer, mC-Label2, mC-Label3, mc-Print2, mc-Print3 & mPOP series [ 3.03MB ]
Linux CUPS Driver Software Manual [ 2.26MB ]
Star JavaPOS Software Manual [ 460KB ]
Mac CUPS Driver Software Manual [ 2.99MB ]
STAR OPOS Control Application Development Guide for POSPrinter [ 577KB ]
StarXpand SDK for React Native Manual [ Click Here ]
More manuals ...
Driver / SDK / Utility
Accessories
STAR Star BSC10II CAD Drawing - Current as of 2024.11.14 [12.2MB]
STAR BSC10II ECO Profile - English Version [150 KB]
STAR WEEE Statement - English Version [52.5 KB]
Youtube Tutorial Video
