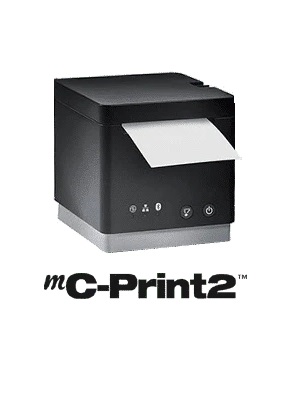

MCP21LB Thermal Printer
Features :
- 100mm/second, 58mm front feed, top-loading thermal receipt printer
- Compact and stylish 96 x 113 x 100mm
- Up to 5 interfaces, Ethernet, USB, Lightning USB with unique SteadyLAN™ Technology, Bluetooth, Wireless LAN module plus Star CloudPRNT™
- 2 x USB host ports with multiple peripheral hub functionality
- Star Cloud Services ready with Star’s Digital Receipting / Internet device management
- Unique receipt decurl function for flat receipts plus paper end sensor
- New compact PS60C power supply
- Support SCD222 Customer Display, BCR12D Scanner, CB2002 Cash Drawer
- Application: Cloud Printer, Cloud POS Printer, Cloud Receipt Printer, Cloud Thermal Printer, Web Printer, Web POS Printer, Web Receipt Printer, Web Thermal Printer
- Optional StarAsia Wifi Adapter
Introduction / Specification / Catalog / Manual / Driver / SDK / Utility / Accessories ：
Introduction
The mC-Print2 is a compact, high quality and versatile solution ideal for businesses operating traditional PC POS systems as well as those migrating to tablet and Cloud-based POS.
Video：
Specification
Series ： ｍC-Ｐｒｉｎｔ２
Model ： MCP21LB USB + Ethernet + Bluetooth(Mfi Certified)
| Max. Print Speed | 100mm/sec. |
| Resolution | 203 dpi |
| No. of Columns | 48 |
| Autocutter | Guillotine Autocutter – full or partial cut (centre) |
Paper : | |
| Paper Width | 58mm |
| Paper Thickness | 0.053 – 0.075mm |
| Paper Roll | Up to 50mm diameter |
| Print Width | 50.8mm |
| Emulation | StarPRNT |
| Sensors | Paper End, Cover Open |
| Interface | USB, Ethernet, Bluetooth, Lightning USB with SteadyLAN™, Star CloudPRNT™ and Hub (2 USB host ports) |
| Power Supply | New Compact PS60 Power Supply with UK Power Cable included. Energy Star Certified. |
| Software | StarPRNT SDK, WebPRNT SDK, CloudPRNT, PassPRNT, WebPRNT Browser, Windows Driver / Utility |
| Star Cloud Services | Digital Receipting, Device Management Tool |
Reliability : | |
| Cutter | 2 million cuts |
| MCBF | 60 Million Lines |
| Dimensions | 96(W) x 113(D) x 100(H) mm |
| Box Includes | Printer, compact PS60C Power Supply, Power Cable, Set Up Guide |
| Options | BCR12D 1D/2D Scanner, CB2002 Cash drawer, CD3336 mini Cash drawer, SCD222 Customer Display, Kitchen Buzzer, Wifi Adapter |
Catalog
Star mC-Print2 Catalog - English Version [ 1.62MB ]
StarAsia BCR12D Barcode Scanner Catalog - English Version [ 518KB ]
StarAsia HCR12BT Barcode Scanner Catalog - English Version [ 1140KB ]
StarAsia CB2002 Cash Drawer Catalog - English Version [ 213KB ]
StarAsia CD850 Cash Drawer Catalog - English Version [ 684KB ]
StarAsia CD3336 Cash Drawer Catalog - English Version [ 292KB ]
Manual
Star MCP21LB Easy Setup Guide [ 3.32MB ]
Star mC-Print2 Online Manual [ Click Here ]
Star Windows Software Installation Manual [ 3.05MB ]
Windows Printer Driver Backup Utility Manual [ 1.57MB ]
How to recover problems after Windows10 Update [ 2.30MB ]
Linux CUPS Driver Software Manual [ 2.26MB ]
How to install the Star JavaPOS Driver for Linux [ 56KB ]
Star JavaPOS Software Manual [ 460KB ]
Ethernet Usage Guideline for macOS [ 300KB ]
Mac CUPS Driver Software Manual [ 2.99MB ]
Bluetooth Pairing Manual (Windows) [ 467KB ]
StarXpand SDK for React Native Manual [ Click Here ]
More manuals ...
Driver / SDK / Utility
Accessories
STAR Star PS60A-24C Power Supply Guide - Current as of 2019 [471KB]
STAR Star mC-Print2 CAD Drawings - Current as of 2019.01.31 [0.99MB]
STAR IF Cover IFC-MC2 Installation Guide - English Version [315KB]
STAR STAR Buzzer Installation Guide - Current as of 2018.06 [1.09MB]
Youtube Tutorial Video
