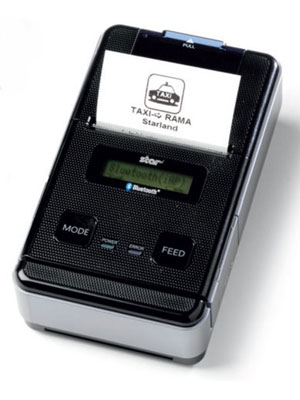

Mobile Printer - SM-S220i Portable Printer
Features :
- 58mm or 2" Mobile Receipt Printer
- Apple MFi Certified
- Small and Light Weight Design
- Long Battery Life
- Bluetooth (2.1: SPP / iOS) and Serial
- Supports iOS and Android
- LCD Display for Battery Life and Printer Error
Introduction / Specification / Catalog / Manual / Driver / SDK / Utility / Accessories ：
Introduction
SM-S220i portable Bluetooth receipt printer is the ideal mobile printing solution for the hospitality and retail industries. Equipped with a sleek, compact and lightweight design and is compatible with all operating systems including iOS (iPad™, iPhone™, iPod™) and all Bluetooth devices, the SM-S220i can be easily fastened on a belt for mobile point of sale and payment processing applications like tableside ordering and line busting.
In addition to easy drop in & print paper loading and print speed of 80mm per second, the SM-S220i features an LCD display and a convenient automatic sleep mode for extended battery life
Video：
Specification
| Model | SM-S220i |
| Printing Method | Direct Thermal Line Printing |
| Printing Speed | 80mm/s |
| Weight | 250g (with Battery) |
| Print resolution | 203dpi |
| Black Mark Sensor | Supported on front of paper |
| Character Set | ANK, Traditional Chinese (Big 5) |
| Barcodes | 1D Code : JAN/EAN, UPC, ITF, CODE 39, Code 93 , Code 128, Codabar (NW-7) |
| 2D Code | QR, PDF417, Data Matrix |
Power Specifications : | |
| Power | DC 7.4V (Lithium Ion Battery 1130mAh) |
| Battery Duration | 8 hour printing (5 minutes interval) |
| Auto Power Down Mode | Configurable |
| Connectivity | Serial, Bluetooth SPP and MFi/iOS |
| Interface | RS232 & Bluetooth 2.1 |
Paper Specifications : | |
| Width | 58 mm |
| Character per line | Font A (12X24 dot): max 32cpl ; Font B (9X24 dot) / Font C (9X17 dot): max 42 cpl |
| Media Type | Thermal paper |
| Thickness | 0.060 - 0.070mm (60g - 70g) |
| Roll Diameter | Max 40mm |
| Paper Loading | "Drop-In & Print" |
Reliability : | |
| MCBF | 37 million lines |
| Print Head | 50KM |
| Stability | 1.2m Drop Test |
| Supported OS | iOS, Android, Windows (Compatible with all operating Systems supporting Bluetooth SPP) |
| Included | AC Adapter, Battery Pack, Serial cable, Belt Clip, Sample Paper Roll & Setup Sheet |
| Options | Single unit Battery Charger, 4 Unit Battery Charger, Battery Pack |
| Overall Dimensions | 80 (W) x 140 (D) x 50 (H) mm |
Catalog
Manual
Star SM-S220i Hardware Manual Rev 1.2 [ 4.74 MB ]
Portable Printer Software Installation Manual [ 3.35MB ]
Bluetooth Utility Software Manual [ 187KB ]
StarPRNT Command Specifications for BSC10II, TSP100IV, Portable Printer, mC-Label2, mC-Label3, mc-Print2, mc-Print3 & mPOP series [ 3.03MB ]
Star ESC/POS® Mode Mobile Printer Command Specifications [ 1.06MB ]
Software Manual for Mac OS X [ 2.7MB ]
Mac CUPS Driver Software Manual [ 2.99MB ]
Bluetooth Pairing Manual (Windows) [ 467KB ]
More manuals ...
Driver / SDK / Utility
Accessories
