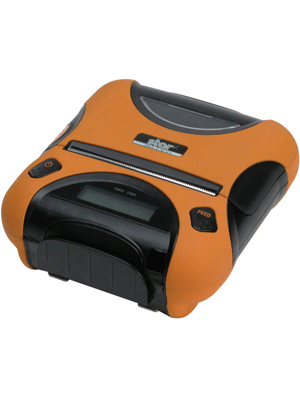

Mobile Printer - SM-T300 Portable Printer
Features :
- 80mm Ultra Rugged Mobile Printer
- Small and Light Weight Design
- Long Battery Life
- Wifi/Serial or Bluetooth/Serial
- LCD Display
- Magnetic Stripe Reader
- 3DES 128bits Encryption
Introduction / Specification / Catalog / Manual / Driver / SDK / Utility / Accessories ：
Introduction
Ideal for the ever growing field service/mobile industry, the SM-T300 may be utilized for workers requiring handhelds to seamlessly print to the worker's mobile printer.
Its rugged design coupled with a long battery life makes the SM-T300 a welcomed option for applications in harsh outdoor environments, such as service & delivery, public safety and utility applications.
In addition to easy drop in & print paper loading and print speed of 80mm per second, the SM-T300 also features an LCD display, magnetic stripe reader and comes standard with a Wifi/Serial or Bluetooth/Serial connection.
Video：
Specification
| Model | SM-T301-DB50 (Bluetooth); SM-T301-DW50 (Wifi) |
| Printing Method | Direct Thermal Line Printing |
| Printing Speed | 75mm/s |
| Character Set | ANK, Traditional Chinese (Big 5) |
| LCD Display | LCD White Backlight |
| Barcodes | JAN/EAN/KAN8, JAN/EAN/KAN13, UPC-A/E, NW-7, ;Interleaved 2/5(ITF), CODE 39/93/128 |
| 2D Code | QR, PDF417, Data Matrix |
| Power | DC 7.4V (1900mAh) / Li-ion Battery |
| Interface | RS232 & Wifi; RS232 & Bluetooth |
Paper Specifications : | |
| Width (Print Width) | 80 mm (72mm) |
| Media Type | Thermal Paper |
| Thickness | 0.060 - 0.070mm (60g - 70g) |
| Roll Diameter | 50mm |
| Paper Loading | ""Drop-In & Print"" |
| Paper Length | 29m/roll |
Reliability Specifications : | |
| Mechanism | 37 million lines |
| Print Head | 50KM |
| Ingress Protection Rating | IP54 |
| Stability | 1.5m drop test |
| Overall Dimensions | 120 (W) x 131 (D) x 58 (H) mm |
| Weight | 560g |
| Included | AC Adapter, Battery Pack, Sample Roll, Setup Sheet |
| Options | Shoulder Strap; Car Charger |
Catalog
Manual
Star SM-T300 Hardware Manual [ 4.18MB ]
Star SM-T300 Hardware Manual [ 4.12MB ]
Star SM-T300 Hardware Manual [ 2.66MB ]
Star ESC/POS® Mode Mobile Printer Command Specifications [ 1.06MB ]
Bluetooth Pairing Manual (Windows) [ 467KB ]
StarXpand SDK for React Native Manual [ Click Here ]
More manuals ...
Driver / SDK / Utility
Accessories
