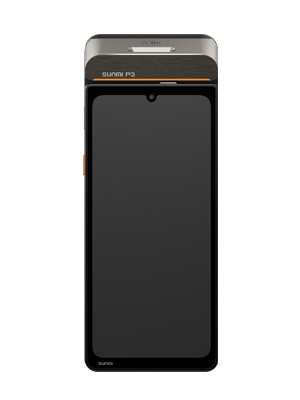

P3
Features :
- Big screen, powerful, innovative payment terminal
- High resolution screen, up to 6.75". 350 nits brightness
- Portable ultra-thin, cutting-edge metallic color
- Big capacity battery - 13 Days standby time
- Anti-fingerprint coating - Keeps finger prints off the screen
- Professional scanner - Accurately reads 1D/2D barcodes, even if scratched, folded or stained
- Optional Dual Screen for Brand Advertising and Transaction Details
Introduction / Specification / Catalog / Manual / Driver / SDK / Utility / Accessories ：
Introduction
The best terminal for all payment functions and superior SaaS application.
Specification
Model : T6F10
| Processor | Quad-Core A53, 2.0GHz |
| OS | SUNMI OS (Based on Android 11 Go） |
| Memory | 2GB RAM+32GB ROM |
| Display | 6.75" TFT HD+720*1600, IPS |
| Touch panel | Capacitive multi-touch, Anti-fingerprint coating |
| Printer | High-speed thermal printer: 70mm/s Paper roll width/diameter: 58mm/40mm |
| Rear Camera | 5MP AF,or 2M FF (Optional) |
| Front Camera | 2MP FF,or N/A |
| Magstripe Reader | Support 1/2/3 track, Bi-direction,complies with ISO7810/7811 standards |
| IC Card Reader | Support smart IC card, complies with ISO7816 standard |
| NFC Reader | Support Type A & B card, Mifare card, complies ISO/IEC 14443,EMV, Paypass, Paywave |
| PSAM card slot | 2xPSAM |
| SIM/SD Card Slot | 1xSIM+1xMicro SD or 2xSIM,1xSIM+1xeSIM + 1xMicro SD (Optional) |
| Scanner | 1D/2D professional Scanner,SS1104 (Optional） |
| Fingerprint | STQC,FBI (Optional) *coming soon |
| Network | 2G&3G&4G |
| Wi-Fi | 2.4G/5GHz, Supports IEEE 802.11 a/b/g/n/ac |
| Bluetooth | Bluetooth 5.0,support BLE |
| GPS | GPS,Glonass,Beidou,Galileo |
| G-Sensor | Optional |
| Buttons | Power Key,Function Key*1 (Optional) |
| Speaker | 1*speaker,90dB |
| Ports | 1*Type-C USB OTG supported, 6*Pogo pin on the back for charging/wired communication (Optional) |
| Battery | Removable Lithium battery, 7.7V/2630mAh |
| Power Adapter | Input: AC100-240V Output: 5V/2A |
| Dimensions (L*W*H) | 201.4*80*17mm |
| Total Weight | 400g minimum (include battery) |
| Environmental | Operating temperature: -10°C ~ 50°C Storage temperature: -20°C ~ 70°C |
| Cradle | Function Cradle, Support 1*USB-C, 1*USB-A, 1*Ethernet (Optional), 1*RS232(Optional), WiFi(Optional) |
Catalog
-- No Record --
Manual
-- No Record --
Driver / SDK / Utility
Accessories
-- No Record --
Youtube Tutorial Video
-- No Record --
