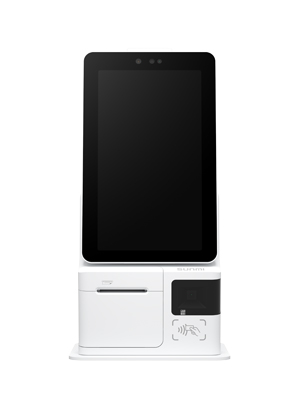

K2-Mini (Retail)

Features :

  • Facial recognition camera. 5~23° adjustable
  • 15.6" Full HD touch screen with a wide view angle & sensitive response
  • International famous scanner scans barcode & payment QR code
  • Japanese Seiko printer supports high-speed printing
  • App Store management, kiosk mode, canary deployment...powered by SUNMI OS

Introduction / Specification / Catalog / Manual / Driver / SDK / Utility / Accessories ：

Introduction

Being only half the size and weight of a traditional kiosk, a K2 MINI only weighs 10Kg. The integrated design also requires you no efforts to assemble.

Specification

Model ： F4504/F4501 (Dual-display version)

Model ： F4503/F4502 (Single-display version)

OSSUNMI OS (*Based on Android OS)
CPUQualcomm Snapdragon Octa-core Processor / Rockchip Quad-core Processor
Memory64G ROM+ 4G RAM, 16G ROM+ 2G RAM
Camera (Optional)3D facial recognition camera
DisplayDual-display version => Main: 15.6" FHD, 1920*1080 Capacitive multi-touch / Secondary: 15.6" FHD, 1920*1080 Capacitive multi-touch
Single-display version => Main: 15.6" FHD, 1920*1080 Capacitive multi-touch
PrinterBuilt-in 80mm thermal printer with auto cutter; Print speed: 250mm/s; Paper roll: φ80mm; Support 58mm width thermal paper (optional)
NFC Reader（Optional）Support ID card, Mifare 1 card (S50, S70) and ISO 14443A CPU card
ScannerSupport 1D, 2D, mobile screen and printed barcodes
Speaker3W)
WIFIIEEE 802.11 a/b/g/n/ac, 2.4/5 GHz
LAN100/1000M Self-adaptive
External Memory1* MicroSD (TF), up to 64G
Interface5× USB Type-A ports
1* Micro USB debug port
1* RJ11 serial port
1* RJ12 cash drawer port
1* RJ45 LAN port
1* Audio jack
1* Power port
BluetoothSupport Bluetooth 2.1/3.0/4.0; Support BLE
Size (L x W x H)Dual-Display : 380*280*590mm
Single Display : 300*250*590mm
Wall-mounted: 265*120*680mm
WeightWall-mounted: 5KGS; Single-display: 8KGS; Dual-display: 10.5KGS
Power AdapterInput：AC100~240V/1.7A; Output：DC24V/2.5A
PSAM Card Slot (Optional)1* PSAM
Buttons1* Power on/off button (lock screen button); 2* Volume (+/-) button
EnvironmentWorking temperature: 0 ~ 40°C
Storage temperature: -20℃ ~ 55℃
Indicator LightSingle color
AccessoriesNFC, cash drawer
