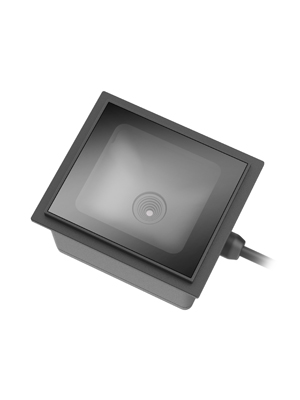

STARASIA BCM12B Embedded Barcode Scanner
Features :
- Self-inductive influence reading of the QR code scanner kiosk
- Multi-language barcode information direct transmission
- Support barcode reading without backlight
- Large scanning window of the kiosk QR code scanner
Introduction / Specification / Manual ：
Introduction
StarAsia BCM12B IP65 Embedded Scanner features a large-angle sensor for high-speed 1D/2D barcode reading without focusing. Weighing only 75g, it offers USB and RS-232 interfaces, supports multiple symbologies and data formatting, ideal for retail, logistics, and healthcare applications.
Specification
Performance | |
| Image Sensor (Pixels) | 640 pixels (H) x 480 pixels (V) |
| Light Source | Illumination: 5000K LED |
| Field of View | 72° (H) x 57° (V) |
| Roll / Pitch / Yaw | 360°, ±65°, ±60° |
| Print Contrast | 20% minimum reflective difference |
| Interfaces | USB, RS232 |
| Motion Tolerances | >2m/s |
| Credit Card Support | Physical card number of Mifare Card; The Untouched IC Card; NFC of mobile phone |
| Card Reading Distance | 0-80mm |
Symbology | |
| 1-D Barcode | UPC, EAN, Code 128, Code 39, Code 93, Code 11, Matrix 2 of 5, Codabar, Interleaved 2 of 5, Ms Plessey, GSI DataBar, China Postal, Korean Postal, etc. |
| 2-D Barcode | PDF417, MicroPDF417, Data Matrix, Maxicode, QR Code, MicroQR, Aztec Hanxin, etc. |
| Minimum Resolution | 5 mil |
Decode Ranges | |
| 6.88 mil (PDF417) | 0mm - 50mm |
| 10 mil (Data Matrix) | 0mm - 50mm |
| 13 mil (UPCA) | 5mm - 110mm |
| 20 mil (QR) | 0mm - 100mm |
Physical Characteristics | |
| Dimensions | 77.5mm x 66mm x 45mm |
| Weight | 75g |
| Voltage | 5 VDC |
| Current | 350mA |
Operating Environment | |
| Operating Temperature | -40°C to 70°C |
| Storage Temperature | -50°C to 80°C |
| Humidity | 0% to 95% relative humidity, non-condensing |
| Shock Specifications | Designed to withstand 1.2m (5') drops |
| Ambient Light Immunity | 0-100,000 Lux |
| Waterproof Class | IP65 |
