SK1-211 (StarPRNT) Thermal Kiosk Printer
Features :
- Compact and lightweight 2″ / 58mm kiosk mechanism
- High quality 203dpi print resolution
- Prints receipts, tickets or labels
- Horizontal (SK1-211) or Vertical (SK1-V211) models
- Max 250mm/sec high-speed printing
- Up to 120mm diameter paper roll as standard with 250mm diameter option
- Up to 150µm paper thickness
- Auto-loading function
- Dual serial and USB interface
- Black Mark / gap sensor for labels
- Black mark sensor for fixed length labels
- StarPRNT or ESC/POS with Windows, Linux and Android drivers
- Wide variety of bezels, presenters and paper roll holders
- Made in Japan
- Recommended StarAsia HCM12A Barcode Scanner Module
Introduction / Specification / Catalog / Manual / Driver / SDK / Utility / Accessories ：
Introduction

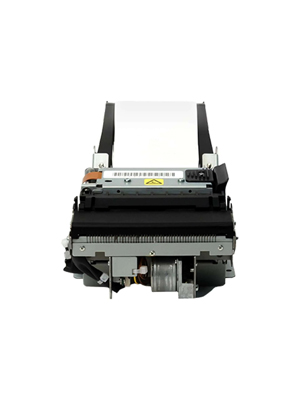

Designed for versatility, the SK1-211 thermal kiosk printer is available in either standard format (horizontal orientation) or vertical format, both with or without presenter. The high-speed kiosk printer is also capable of printing receipts, tickets, and Black Mark labels.
Specification
Series ： SK1-211SF2 (StarPRNT) Horizontal Type
Model ： SK1-211SF2 (StarPRNT) Horizontal Type, without Presenter, optional bezel
Model ： SK1-211SF2-LQP (StarPRNT) Horizontal Type, with Presenter
Series ： SK1-V211SF2 (StarPRNT) Vertical Type
Model ： SK1-V211SF2 (StarPRNT) Vertical Type, without Presenter, optional bezel
Model ： SK1-V211SF2-LQP (StarPRNT) Vertical Type, with Presenter
General : | |
| Printer Method | Direct Line Thermal Printing |
| Print Speed | Max 250mm/sec |
| Resolution | 8 dots/mm (203 dpi) |
| Font | 8×16, 12×24 dots |
| Character Types | PC437/850/852/857/858/860/863/865/866, WPC 1252 |
| Barcode | JAN8/13, CODE39, ITF, CODABAR, CODE128, UPC-A/E |
| 2D Code | QR, Maxicode, Micro PDF-417, PDF-417, DataMatrix |
Paper : | |
| Paper Width | 58mm, 60mm |
| Print Width | 54mm, 56mm |
| Paper Roll Holder | 120mm (StarAsia Jumbo Roll A120) |
Interfaces : | |
| Interface | Dual Serial (RS232C) & USB(V2.0 FULL SPEED) |
| Cutter | Full and partial cut (command selectable) |
Power : | |
| Operating Voltage | DC 24V |
Measurement: | |
| External Dimensions | SK1-211: 104 x 137 x 79 (W x H x D)mm |
Reliability : | |
| Reliability MCBF (Printer) | 250 Million Lines |
| Print Head | 150KM |
| Auto Cutter Life | 2 Million Cuts |
| Safety Standard | CE, FCC, VCCI |
Accessories : | |
| Power Supply | PS60A Power Adapter |
Catalog
StarAsia Kiosk Printers Product Guide 2023 - English Version [ 1182KB ]
SK1-211/311 Catalog - English Version [ 2627KB ]
StarAsia HCM12A Scanner Module Catalog - English Version [ 762KB ]
Manual
SK1/SK5 Series Kiosk Printer Software Installation Manual [ 1.71MB ]
Line Thermal Printer StarPRNT Command Specifications for SK1 series [ 3.61MB ]
Linux CUPS Driver Software Manual [ 2.26MB ]
How to install the Star JavaPOS Driver for Linux [ 56KB ]
Mac CUPS Driver Software Manual [ 2.99MB ]
StarXpand SDK for React Native Manual [ Click Here ]
More manuals ...
Driver / SDK / Utility
Accessories
Youtube Tutorial Video
